iE-35

Details
Connections
Specification
Demo

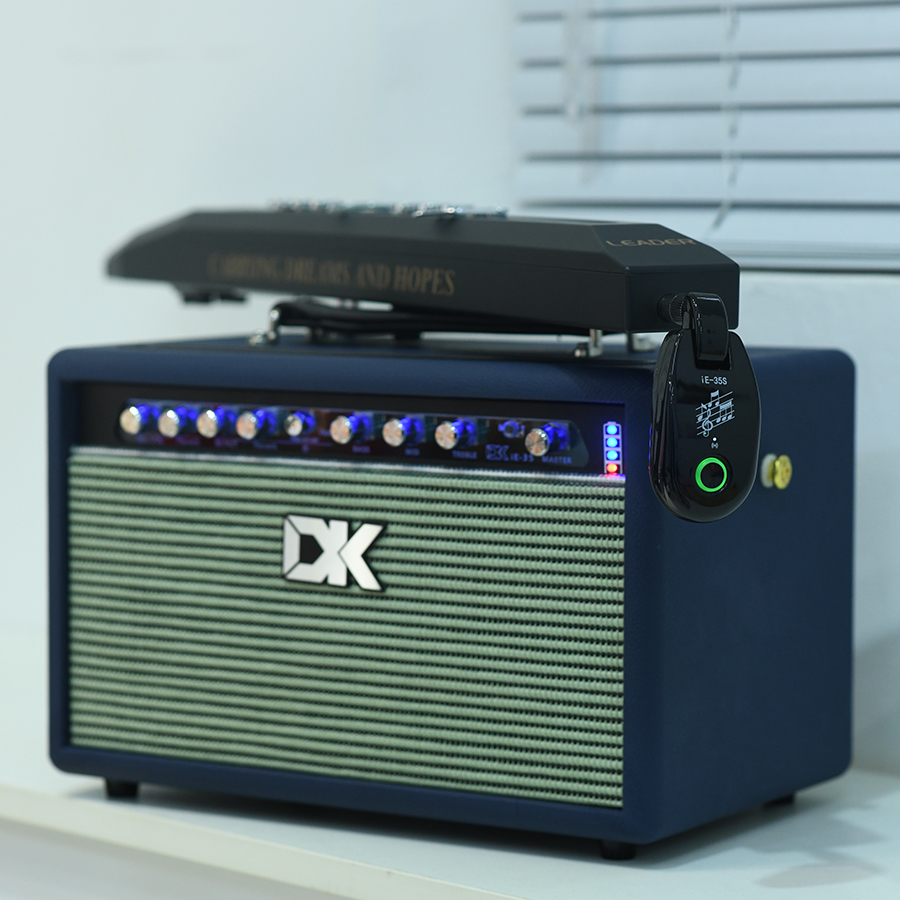

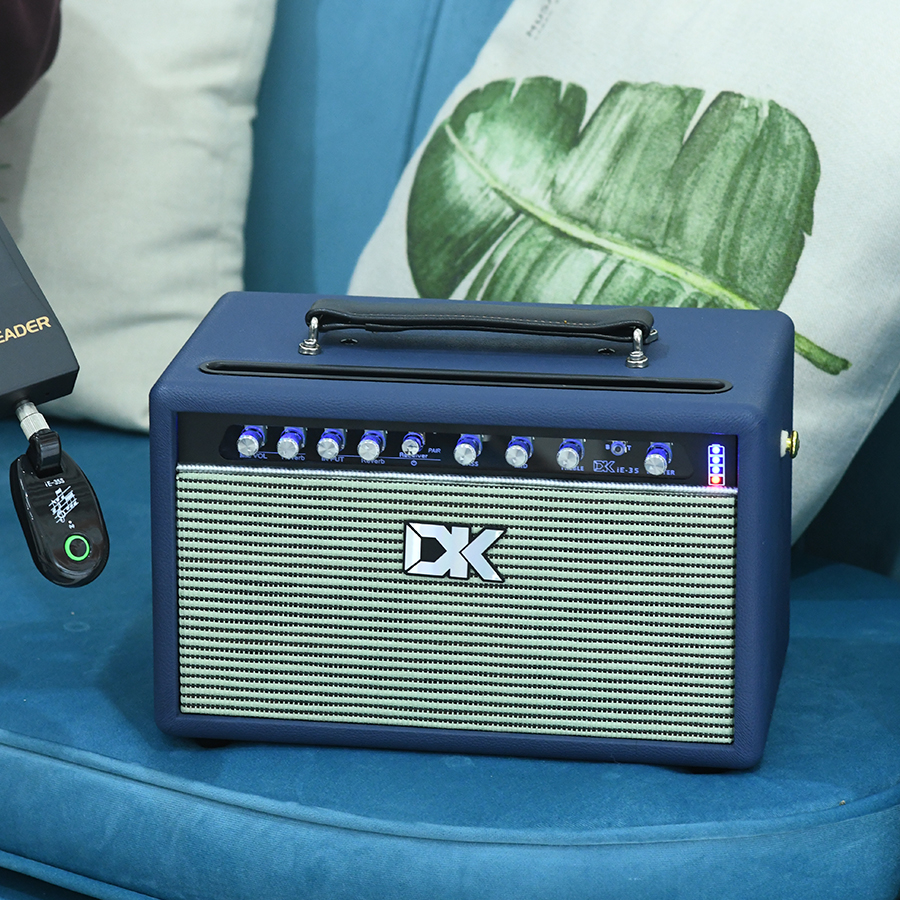

iE-35

Windsynth Amplifier


V5.0 Bluetooth connection

1/8"(3.5mm) recording and headphone connnectors

Microphone Input

Wireless System with receiver switch button (receiver included)

Microphone Volume and Reverb controls, Input and Reverb controls, 3 bands EQ

35 Watt Output

2 x 5.5 inch/25W full range speakers


iE-35 Manual Download

Rated power: 35W

Peak power: 45W

Speaker unit: Full-range 5.5-inch, 25W x 2

Adapter: Input AC 110~240V 0.5A, Output USB-Type-C DC 5V 2000mA

Instrument input 1: 6.35mm socket

Signal-to-noise ratio: 90dB

Input sensitivity/impedance: -8dB/10kΩ

Instrument input 2: UHF wireless receiver

Signal-to-noise ratio: 95dB

Input sensitivity: -8dB

Wireless transmission distance: <50 meters

Microphone input: 1/4” (6.35mm) socket

Signal-to-noise ratio: 90dB

Input sensitivity/impedance: -15dB/2kΩ

Package dimensions: Length 355mm x Width 240mm x Height 270mm

Net weight: 3.2kg

Gross weight: 4.5kg
