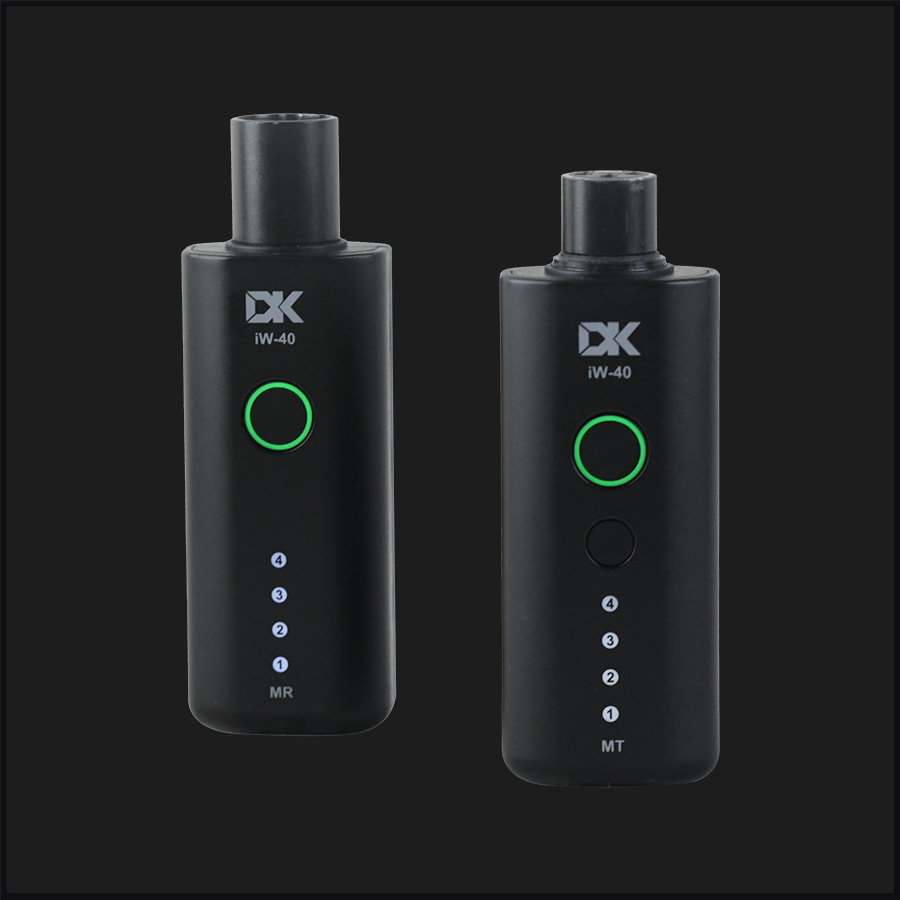

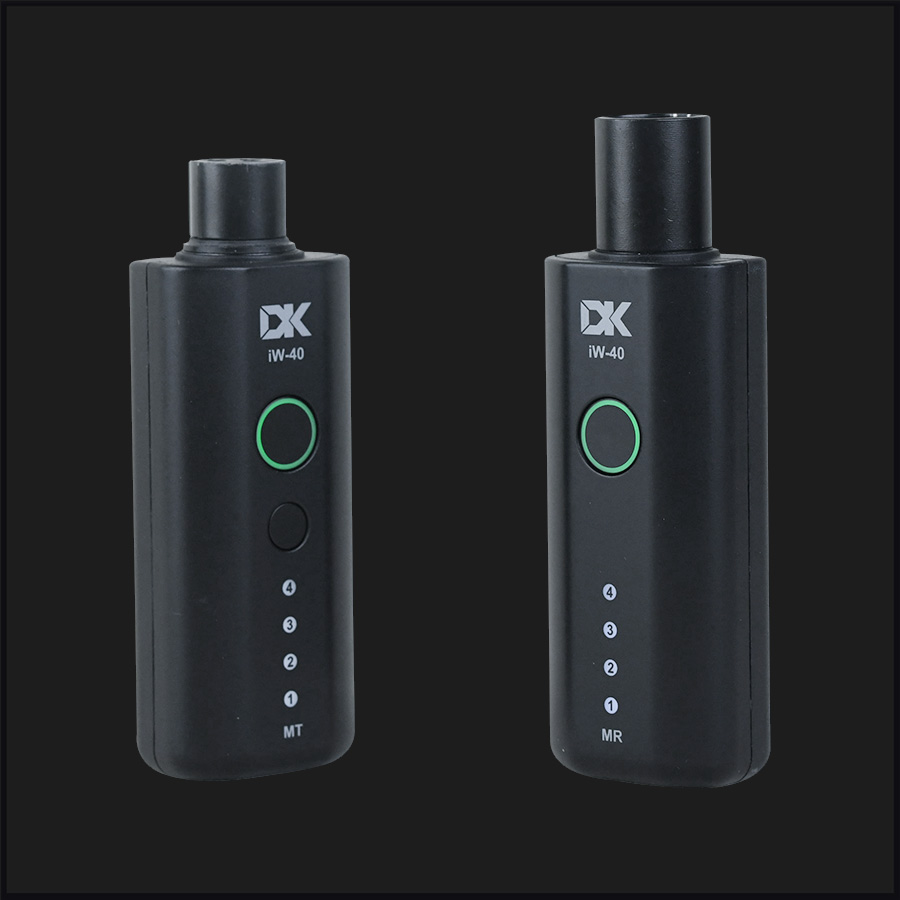

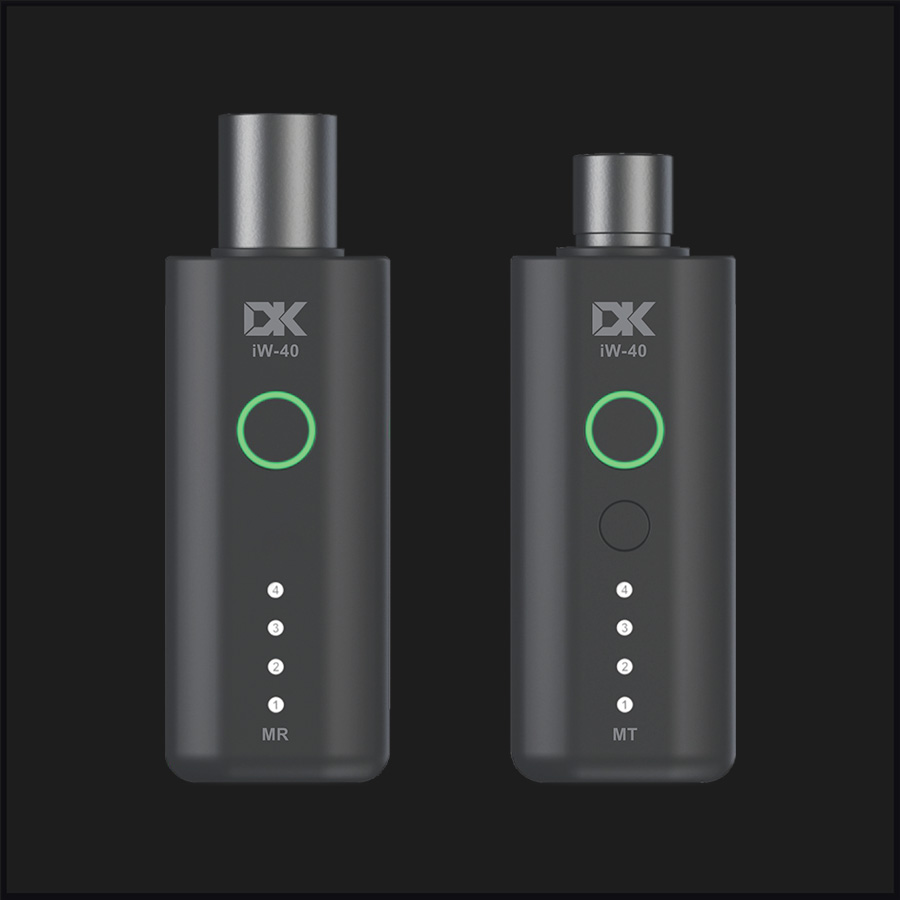

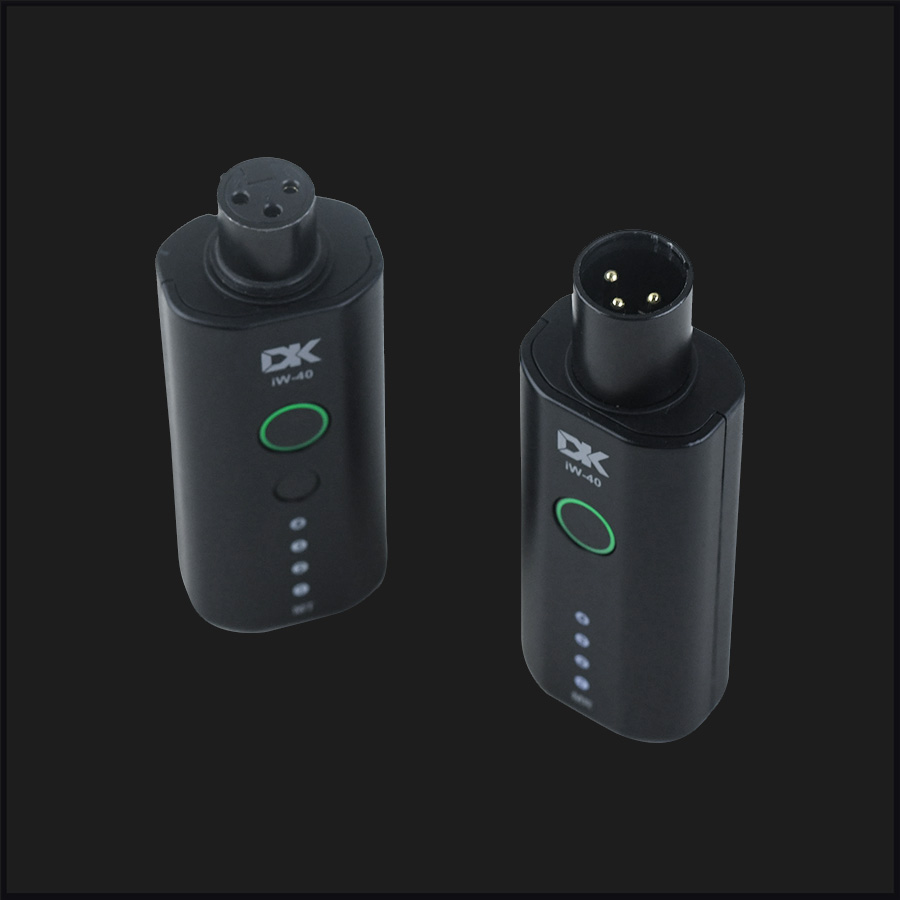

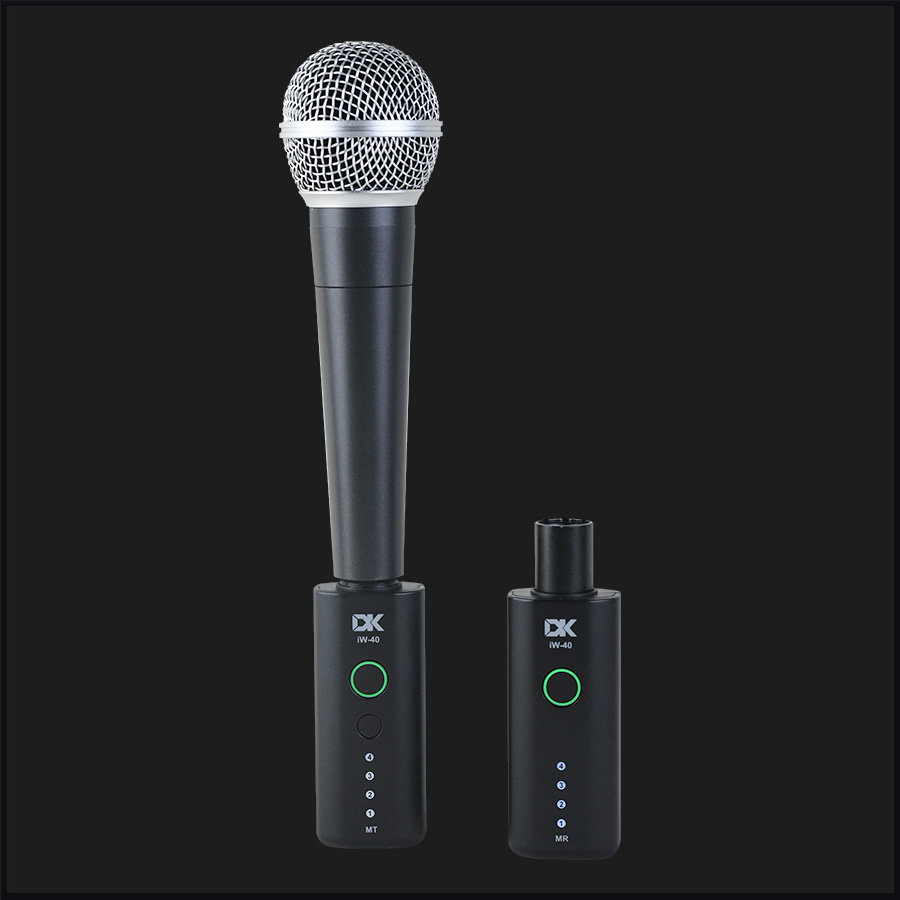

iW-40

Microphone Wireless Transmitter and Receiver


2.4GHz wireless microphone technology

XLR interface

USB Type-C charging port

48V phantom power supply

Battery life exceeding 10 hours

Transmission range over 30 meters


iW-40‍Pro Manual Download

螢幕截圖 2024-08-14 16.04.42.png螢幕截圖 2024-08-14 16.04.45.png

iW-40MR Recevier

Frequency Range: 2.4GHz ISM

Modulation Type: Gaussian Frequency-Shift Keying (GFSK)

Sensitivity: > -92dBm

Frequency Response: 35Hz - 17kHz (± 2dB)

Signal-to-Noise Ratio (S/N): 101dB

Total Harmonic Distortion (THD): 0.05% @ 1kHz

Latency: 10ms

Operation Time: 10 hours

Working Range: > 30 meters

Dimensions: 35 x 25 x 105 mm

Weight: 72 g


iW-40MT Transmitter

Frequency Range: 2.4GHz ISM

Modulation Type: Gaussian Frequency-Shift Keying (GFSK)

Maximum Output Power: 13dBm

Frequency Response: 35Hz ~ 17kHz (± 2dB)

Signal-to-Noise Ratio (S/N): 101dB

Total Harmonic Distortion (THD): 0.05% @ 1kHz

Working Current: 45mA @ 3.7V (Minimum), 120mA @ 3.7V (Maximum)

Latency: < 10ms
