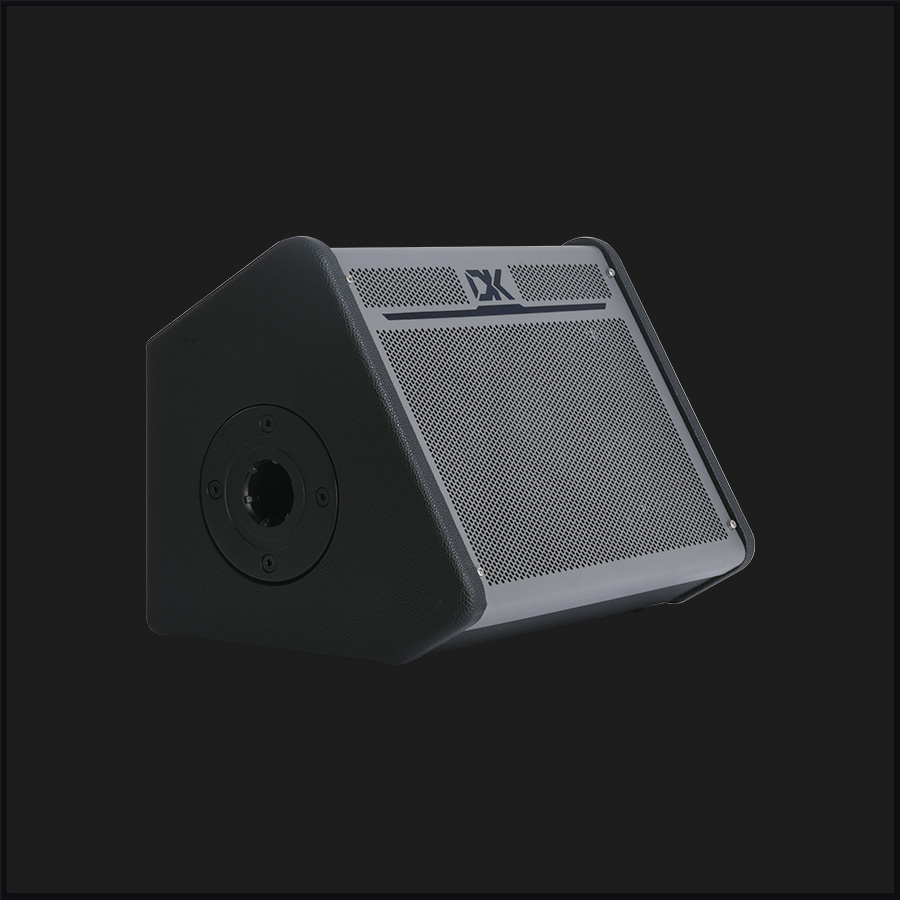

iC-100

iC-100

Acoustic Singing Amplifier

• V5.0 Bluetooth connection, TWS for Multiple Amps Connection

• One-Key Voice Remover

• Type-C Charger

• 1/8"(3.5mm) Aux in/recording and headphone connnectors

• Line in and out for Mutiple Amps connection

• 2 Instrument Inputs

• 3 ways for Microphone Inputs (XLR, 1/8"(3.5mm) , 1/4"(6.3mm)

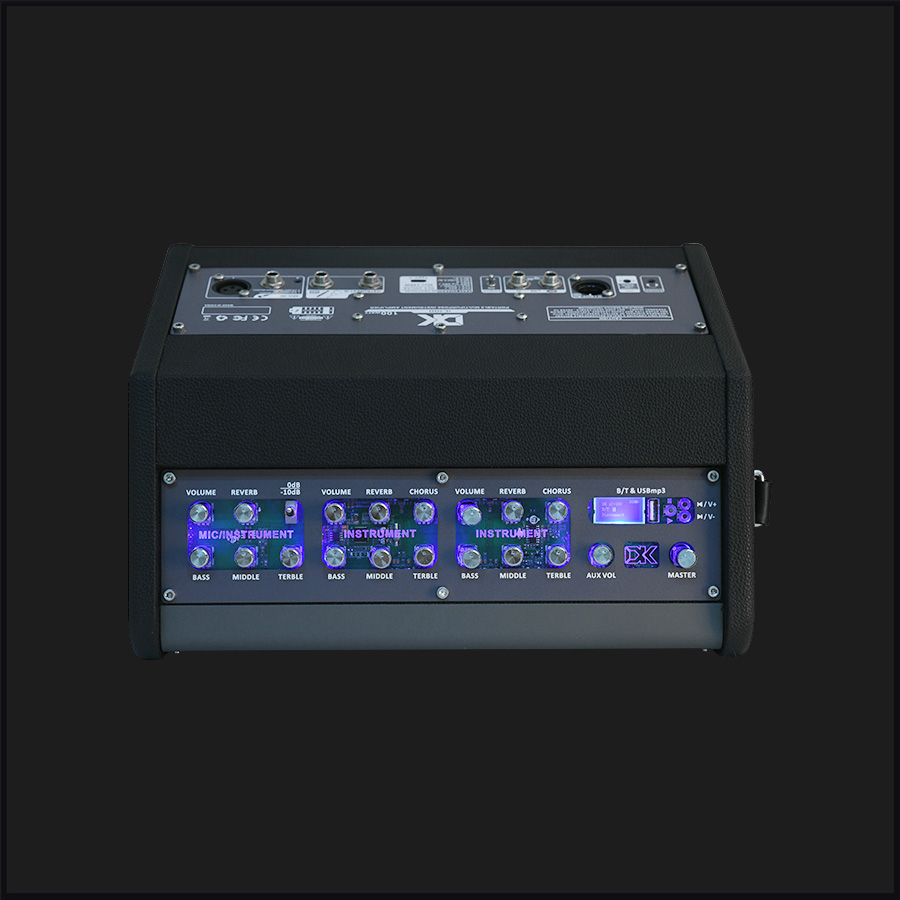

• Microphone Channel: Volume and Reverb controls, 3 bands EQ, High pass and Low pass switch

• Instrument Input 1/2: Volume, Reverb and Chorus controls, 3 bands EQ

• Aux Volume and Master controls, USB connector for U Disk and Audio Interface

• 5200mA Lithium Battery

• 100 Watt Output

• 8 inch/150 Watt low frequency speaker, 3 inch/30 Watt mid frequency speaker and 2.5

inch/15 Watt high frequency speaker

‍iC-100 Manual Download

i‍C-100 Product Manual

• Rated Power: 100W (Low: 70W, Mid: 20W, High: 10W)

• Peak Power: 150W

• Speaker Units: Woofer: 8-inch 150W x 1, Midrange speaker: 3-inch 30W x 1, Tweeter: 2.5-inch 15W x 1

• Charger: Input AC 110-240V, 0.7A, 50/60Hz; Output Type-C Interface, DC 5-20V, PD Protocol 65W

• Battery: DC 14.8V, 5200mAh Lithium-Ion Battery

• Speaker Series Connection: 1/4” (6.35mm) Interface, Audio Sync with Speakers

• Monitor Output: XLR Interface, Stereo

• Headphone Jack: 3.5mm Interface, Stereo

• Simulated Live Broadcasting: 3.5mm Jack, Input Impedance 22kΩ

• Signal-to-Noise Ratio: 95dB, Input Sensitivity: 15dB

• Bluetooth: V5.0

• TWS Wireless Pairing: Main Unit - Left Channel, Secondary Unit - Right Channel

• USB Interface: U-disk Mode - FAT32 Format, Play MP3 Files

• Digital Live: Use a Dedicated Data Cable

• Sound Card: Connect to the Computer via USB Male-to-Male Data Cable

• Live Recording: Audio Broadcasting, Supports Apple and Android Systems

• Frequency Response: 20Hz-20kHz

• Charging Time: Fast Charge (9-20V) 0.5-2 hours, Slow Charge (5V) 5-10 hours

• Product Dimensions: L360 x W270 x H280mm

• Inner Box Dimensions: L445 x W365 x H370mm

• Net Weight: 7kg

• Gross Weight: 8kg
